Product Description

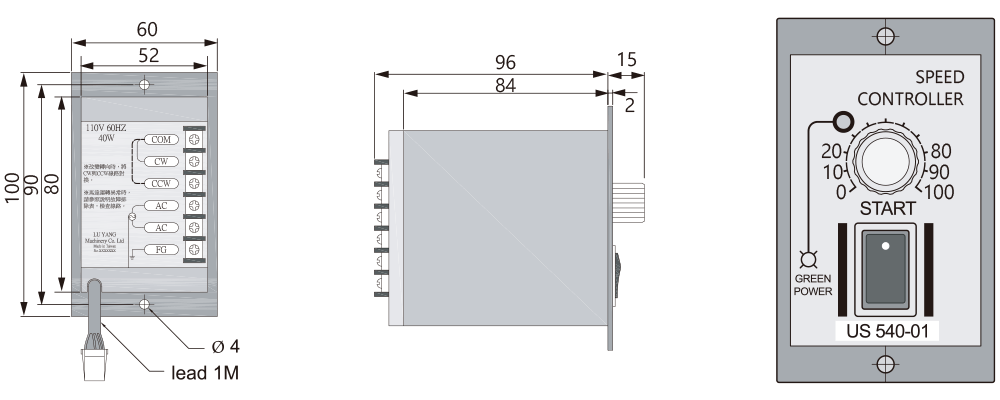

US206 / US315 / US425 / US540 / US560 / US590 / US5120 / US5150 【K Series】

US combination speed controller is a product that controls the output speed of the motor by adjusting the voltage. It is used to control motor speed in simple way. You can easily adjust the motor speed by using the knob on the US combination speed controller.

  • Unit type, easy operation.
  • Easy connecting motor with connectors.
Inquiry
  • Available for 6W~150W motors.
  • Available for single phase motors (built-in capacitor).
  • Control units combine the control pack and capacitor into one device.

SPECIFICATION SHEET

ModelTypeVoltageSuitable For OutputSpeed RangeSpeed Rate Of ChangeVelocity ReactionVelocity SafetyAmbient Condition
US206-□□ Combination Speed Controller Single-phase 6W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US315-□□ Combination Speed Controller Single-phase 15W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US425-□□ Combination Speed Controller Single-phase 25W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US540-□□ Combination Speed Controller Single-phase 40W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US560-□□ Combination Speed Controller Single-phase 60W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US590-□□ Combination Speed Controller Single-phase 90W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US5120-□□ Combination Speed Controller Single-phase 120W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
US5150-□□ Combination Speed Controller Single-phase 150W 60Hz: 90~1600rpm
50Hz: 90~1350rpm		 5% 0.5Sec -10°C~50°C ◎
