Decimal GearBox

Decimal GearBox

Product Description

2GN10XK / 3GN10XK / 4GN10XK / 5GN10XK / 5GU10XK 【K Series】

If gearbox cannot provide enough ratio, decimal gearbox could be considered to add one or more gearboxes to get preferable ratio.

  • Get greater gear ratio
  • Gear ratio 1/10
  • Reduce output rpm and get a bigger torque
  • Low noise and no need to change oil
Inquiry
  • Square Box
  • Model: 2GN10XK / 3GN10XK / 4GN10XK / 5GN10XK / 5GU10XK
  • Dimension: 60 / 70 / 80 / 90mm
  • Gear Ratio: 1/10
  • For motor output：6W ~ 150W

SPECIFICATION SHEET

ModelTypeFrameRatioFor Motor Output
2GN10XK Square Box 60mm 1:10 6W
3GN10XK Square Box 70mm 1:10 15W
4GN10XK Square Box 80mm 1:10 25W
5GN10XK Square Box 90mm 1:10 40W-60W
5GU10XK Square Box 90mm 1:10 60W-150W

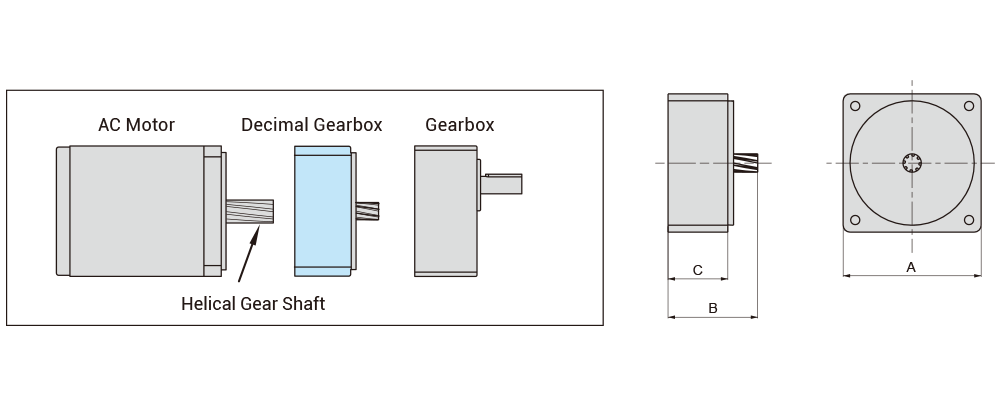

DIMENSION (mm)

MODELOUTPUT(W)ABC
2 6W 60 39 26
3 15W 70 39 26
4 25W 80 39 26
5 GN  40W-60W 90 59 40
GU  60W-150W 90 59 40
